Start Motor

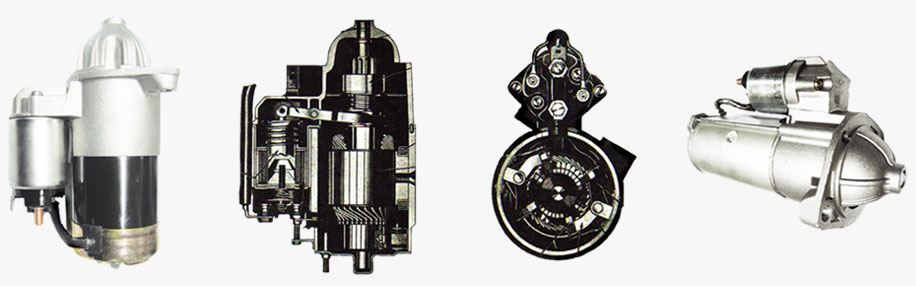

AUTOMOTIVE ENGINE STARTER



The device that activates the engine by applying solenoid electricity torque emerged from magnatic field. With Alternator as core parts to the engine system, they make up the heart of electricity devices for the automobile.

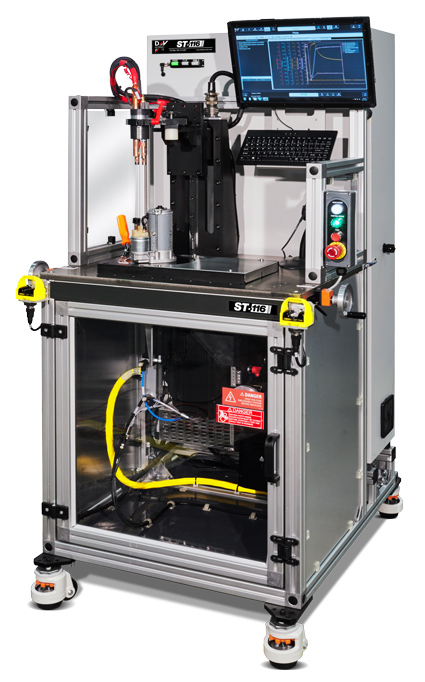

       ST 116

      START MOTOR TEST MACHINE





TECHNICAL SPECIFICATIONS

  • •Torque 200 Nm w std. gears, : up to 300 Nm with optional gears
  • •Starter Voltage : 24V peak (optional 32V)
  • •Solenoid Voltage  : 24V peak (optional 32V)
  • •Solenoid Voltage Drop : 5.0V peak
  • •Starter Current : 1600 Amps peak (1200 Amps peak with 32V option)
  • •Solenoid Current  : 250 Amps peak
  • •Starter Free Run Speed : 20,000 RPM
  • •Starter Loaded Speed  : 4000 RPM
  • •Starter Power Supply Resistance  : 30 milliOhms
  • •Starter Efficiency : 0-100%
  • •Ripple Current  : 0-100 Amps
  • •Operating Temperature  : 10 - 40° C
  • •High speed data acquisition system

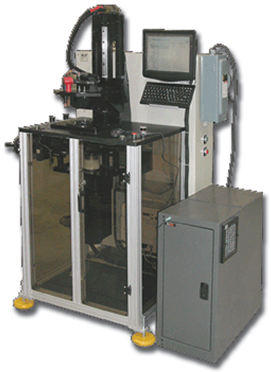

       ST 16

      START MOTOR TEST MACHINE




  •
  • FEATURES
    • •Contact voltage drop : 0 - 2.5 Volts
    • •Starter efficiency : 0 - 100%
    • •Starter output power up to : 3.0 - 4.0 KW
    • •Starter input power : 0 - 20 kW
    • •Starter current  : 0 - 1500 Amps
    • •Solenoid Current  : 250 Amps peak
    • •Starter voltage  : 0 - 40 Volts
    • •Starter speed  : 0 - 10,000 RPM
    • •Starter torque  : 0 - 50 Nm
    • •Solenoid current : 0 - 150 Amps











AUTOMOTIVE ENGINE STARTER

The device that activates the engine by applying solenoid electricity torque emerged from magnatic field. With Alternator as core parts to the engine system, they make up the heart of electricity devices for the automobile.

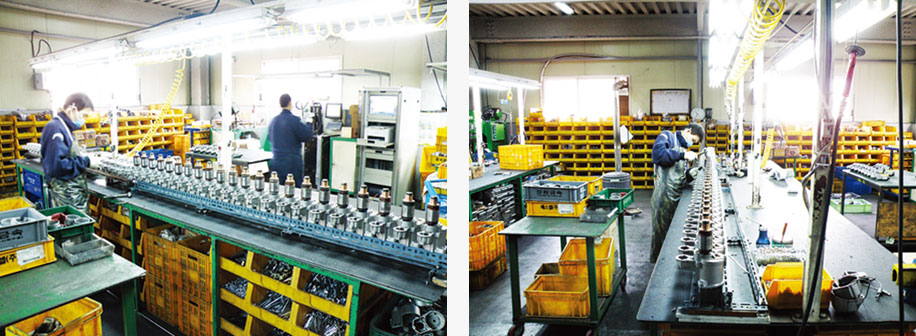

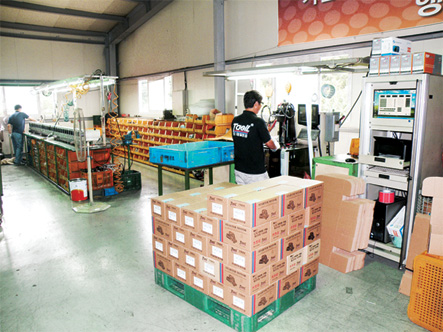

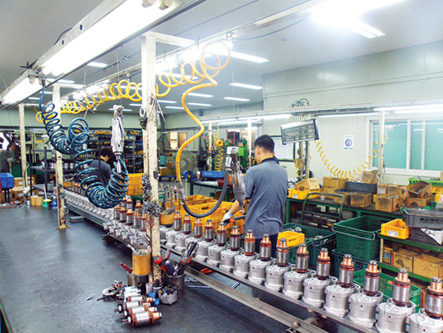

Accurate solution / Plenty of experience Self management from production to distribution.
Large volume and huge capacity to support market.

Minimize operating expenses through unified control.
Provide reasonable yet competitive price.
Specialists with skillful experience and professional knowledge.
Upgrade the value of your business with high credibility of profound brand image.
